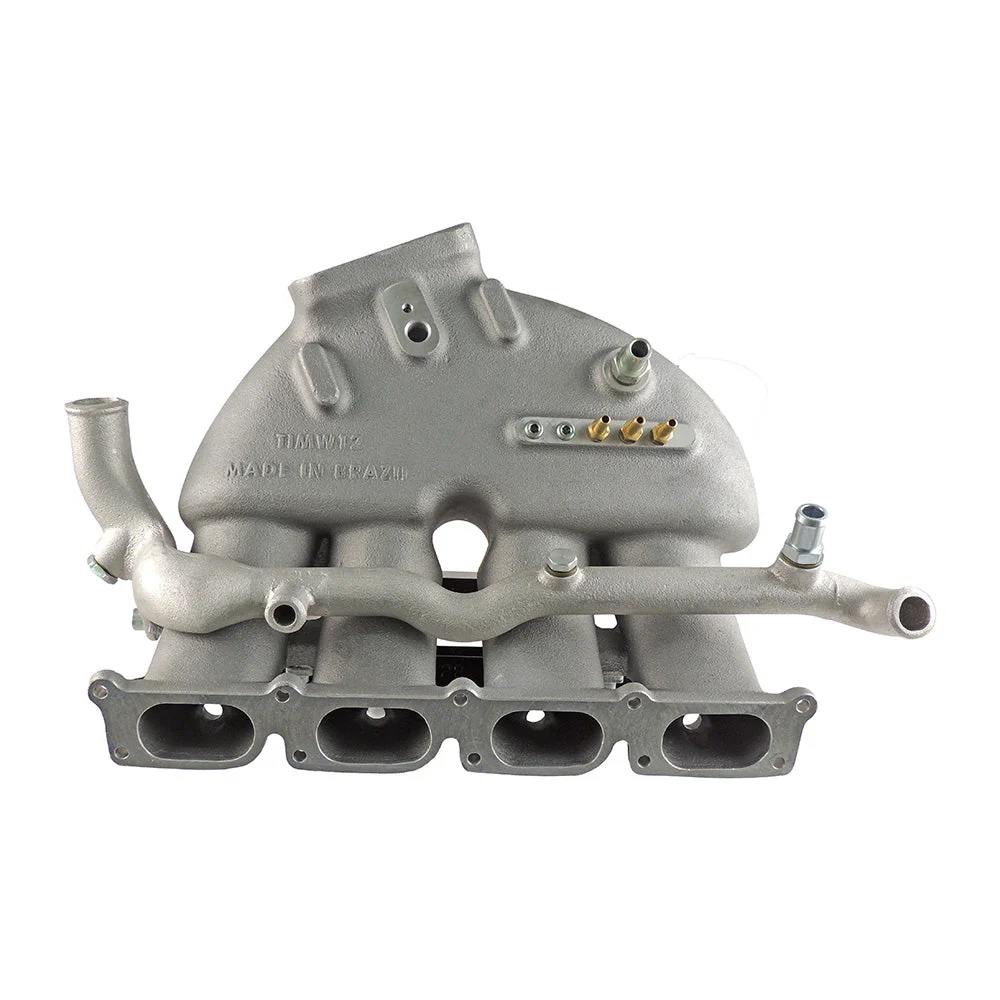

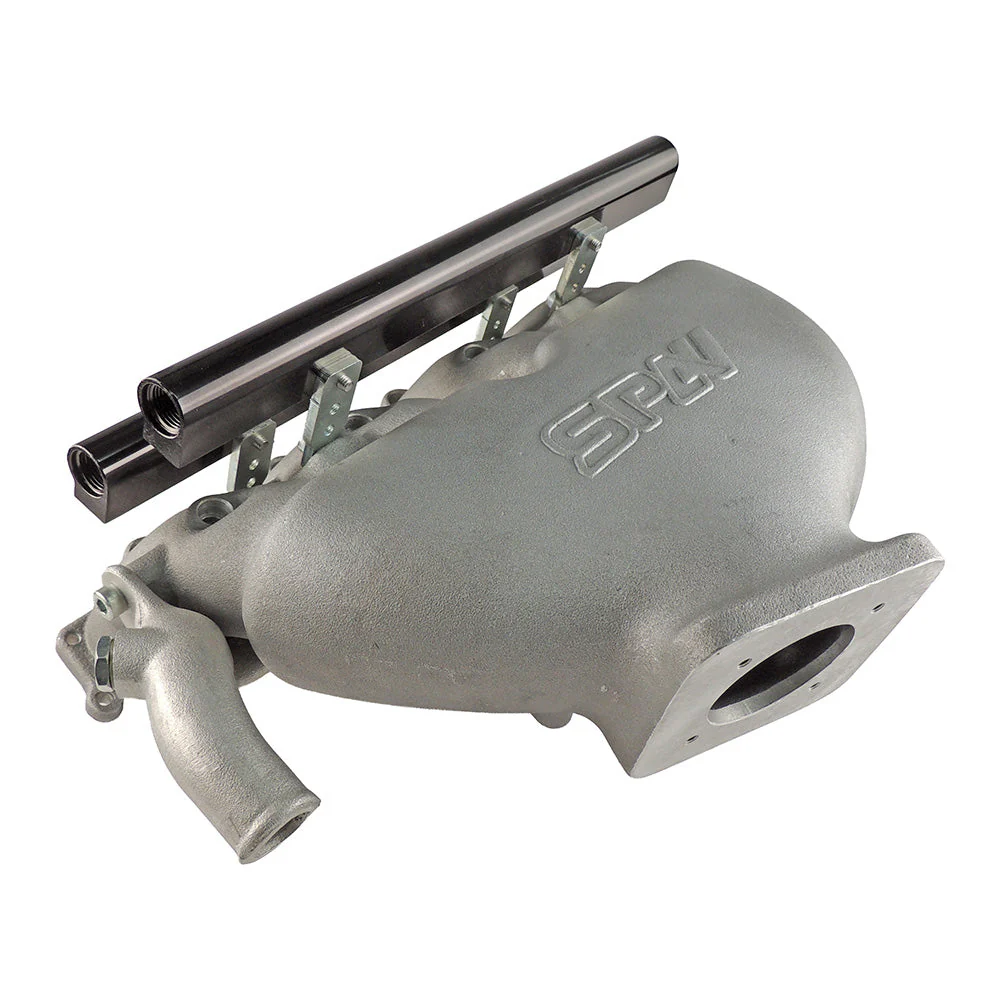

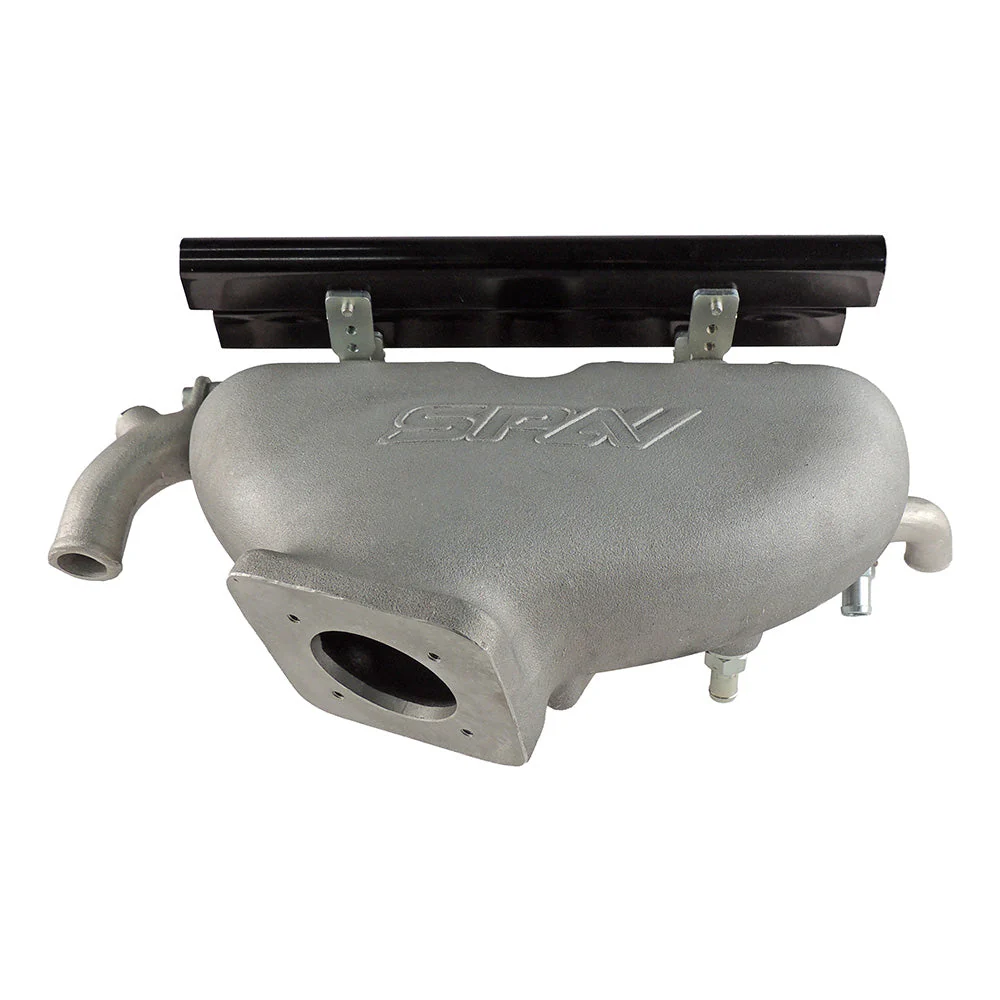

SPA TURBO Cast Aluminum Intake Manifold for longitudinal VW/AUDI 1.8T with 8 injectors Fuel Rail Kit (OEM throttle) - PRE SALE

Take advantage of this great opportunity and buy this product at an unbeatable price! This item will be available for delivery approximately 12/25/2024.

SPA Turbo’s intake manifold was designed for upgrades builds, having a bigger plenum volume and allowing higher airflow, it is the perfect solution for those who wants high performance and durability, guaranteed by the cast aluminum construction. Available in 4 or 8 injectors with anodized aluminum fuel rails. In addition, you can choose between an OEM throttle body bolt holes pattern or without holes, for those who wants to use a different throttle body (up to 80mm).

Application: VW Passat 1.8 20V Turbo / Audi A4 / A6 1.8 20V Turbo (Large Port head)

Number of injectors: 8

Fuel rail: anodized aluminum, -8AN inlet/outlet

Throttle body position (TBI): side (not OEM)

Throttle body bolt holes pattern: OEM

Max pressure capacity: 10bar (145psi)

Internal volume: 3,2L

Material: cast aluminum

Ports: stock temperature sensor, 1/8” NPT (5x), -6AN (1x)

It is necessary to replace the stock water pipe (06B 121 070H) with the supplied one, which is directly compatible*. For other applications, adaptations are required.

 *Note: water pipe features a -6AN port for turbo water cooling, fitting not included.
